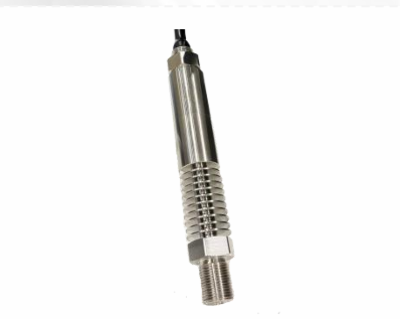

DFP4500 Pressure Transmitter
Industrial pressure transmitter for water treatment, HVAC, hydraulics, machinery, and OEM projects.
- Range and output selection support
- OEM configuration available
- Datasheet and technical response
Technical Specifications
| Measurement range | -0.1 MPa...0 MPa to 0.01 MPa...60 MPa; specify the calibrated range |
|---|---|
| Pressure type | Gauge, absolute or sealed gauge |
| Output options | 4-20 mA, 2-wire; voltage output, 3-wire, configuration dependent |
| Supply voltage | 9-36 VDC for current output; 10-30 VDC for voltage output |
| Accuracy | +/-0.25% FS typical; +/-0.5% FS maximum |
| Operating temperature | -30 to +80 deg C |
| Sensor material | 316L stainless steel |
| Seal material | Fluororubber |
| Protection rating | IP68 cable type |
Source: Selection guide V1.0. Confirm the exact ordered configuration.
Overview
DFP4500 Pressure Transmitter is designed for stable pressure measurement in industrial automation, water treatment, HVAC, process control, hydraulic systems, and OEM equipment.
Typical Applications
- Water treatment and pump monitoring
- HVAC and building automation
- Hydraulic and pneumatic systems
- Industrial machinery and compressor control
- OEM equipment integration
Key Features
- Compact structure and easy installation
- Wide measuring range for different pressure media
- Multiple electrical connection options for flexible wiring
- High accuracy for stable process monitoring
- Fully welded sensor design for demanding industrial use
Advantages for B2B Projects
- Simple integration with common PLC and control systems
- Reliable operation for continuous monitoring projects
- Flexible connector and cable options
- Suitable for standard orders and customized projects
FAQ
Can this model be customized?
Yes. Range, output signal, connector, cable length, and housing options can be tailored to your project.
What applications is it suitable for?
It is widely used in water treatment, HVAC, machine control, hydraulics, and OEM systems.
Do you support technical selection?
Yes. Share your medium, pressure range, signal type, and installation requirements, and we will recommend a suitable model.
Technical Data & Selection Guide
Technical Highlights
- Integrated structure, no external adjustment required
- Reliable performance, safe and convenient to use
- With short circuit protection and reverse polarity protection
- Can measure gauge pressure, absolute pressure and sealed gauge pressure
- Cable outlet + rear end thread seal, used in explosion-proof environment
- Can be used in high temperature environments, The heat sink adopts a modular structure, and the number of heat sinks can be freely selected according to the ambient temperature of measurement.
Technical Data & Selection Guide
The DFP4500 type pressure transmitter is a zero point and full range output adjustable pressure transmitter developed and produced by our company. It uses high stability and high reliability pressure sensor and high performance transmitter dedicated circuit, the overall performance is stable and reliable. Widely applicable to the detection and control of fluid pressure in petroleum, chemical, power, hydrology, geology and other industries.
Selection Guidance
Specify range, pressure type, output and cable arrangement. For a hot process, provide both medium and ambient temperatures so the cooling configuration can be confirmed. Do not interpret a cooling option as an unrestricted medium-temperature or hazardous-area approval.
Quotation Checklist
- Measured medium and application
- Required pressure, level, or temperature range
- Output signal and supply voltage
- Process connection and electrical connection
- Accuracy, protection, and operating temperature requirements
- Quantity, destination country, and OEM customization needs
Before You Request a Quote
For a faster technical response, include the installation environment, controller or PLC interface, expected order quantity, destination country, and whether you need a standard model, private label, custom cable, or special process connection.
Need a Datasheet or RFQ?
Send your technical requirements and our team will help confirm the suitable model and configuration.
