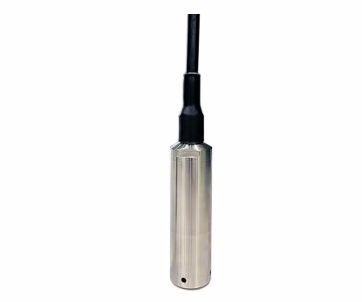

DFP4600W Level Transmitter
Level transmitter for tanks, wells, liquid storage, water treatment, and OEM monitoring systems.
- Range and output selection support
- OEM configuration available
- Datasheet and technical response
Technical Specifications
| Level range | 0-1 mH2O...200 mH2O; specify the calibrated range |
|---|---|
| Output options | 4-20 mA, 2-wire; voltage output, 3-wire, configuration dependent |
| Supply voltage | 9-30 VDC for current output; 12-30 VDC for voltage output |
| Accuracy | +/-0.25% FS typical; +/-0.5% FS maximum |
| Operating temperature | -20 to +80 deg C |
| Sensor material | 316L stainless steel |
| Seal material | Fluororubber |
| Protection rating | IP68 sensor; IP65 junction box |
| Media compatibility | Fluids non-corrosive to the selected 316L and fluororubber parts |
Source: Selection guide V1.0. Confirm the exact ordered configuration.
Overview
DFP4600W Level Transmitter is designed for stable level measurement in tanks, wells, liquid storage, and water treatment systems. It helps customers monitor liquid levels accurately and integrate the signal into industrial control systems.
Typical Applications
- Tank and reservoir level monitoring
- Water treatment and wastewater systems
- Liquid storage and process vessels
- Well and sump monitoring
- OEM liquid measurement systems
Key Features
All-stainless welded structure, small & light
Reliable, safe & easy to use
Short-circuit & reverse polarity protection
IP68 sensor, IP65 junction box
Intrinsically safe: Ex ia IIC T6 Ga
Technical Data & Selection Guide
DFP4600W is a fully sealed submersible level transmitter. It uses OEM pressure sensor and high-precision circuit, suitable for water, oil, chemical level measurement in water supply, mining, petrochemical, etc.
Advantages for Liquid Measurement
- Reliable level monitoring for continuous operation
- Industrial design for long-term use
- Easy integration with control panels and PLC systems
- Suitable for standard and customized level projects
FAQ
Can this model be used for tanks and wells?
Yes. It is suitable for a wide range of liquid storage and monitoring applications.
Can the output be customized?
Yes. We can support different output signals and installation requirements.
How do I choose the right level transmitter?
Share the medium, range, installation condition, and output requirements, and we will recommend a suitable model.
Download the Selection Guidee
The PDF below includes the detailed configuration and selection reference.
Selection Guidance
Specify liquid, maximum level, calibrated water-column range, cable length and output. Confirm compatibility with 316L stainless steel and the seal. The guide distinguishes IP68 at the submerged sensor from IP65 at the junction box; do not submerge a junction box on the basis of the sensor rating.
Quotation Checklist
- Measured medium and application
- Required pressure, level, or temperature range
- Output signal and supply voltage
- Process connection and electrical connection
- Accuracy, protection, and operating temperature requirements
- Quantity, destination country, and OEM customization needs
Before You Request a Quote
For a faster technical response, include the installation environment, controller or PLC interface, expected order quantity, destination country, and whether you need a standard model, private label, custom cable, or special process connection.
Need a Datasheet or RFQ?
Send your technical requirements and our team will help confirm the suitable model and configuration.
