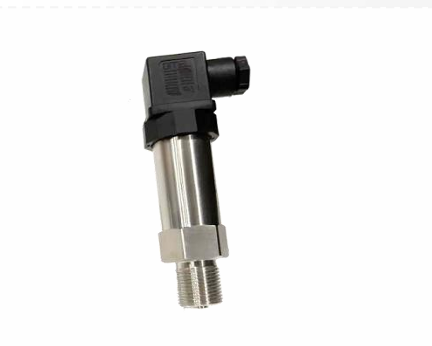

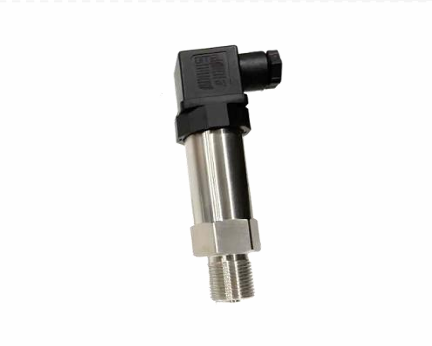

DFP4100 General Purpose Pressure Transmitter
Industrial pressure transmitter for water treatment, HVAC, hydraulics, machinery, and OEM projects.
- Range and output selection support
- OEM configuration available
- Datasheet and technical response
Technical Specifications
| Measurement range | -0.1 MPa...0 MPa to 0.01 MPa...100 MPa; specify the calibrated range |
|---|---|
| Pressure type | Gauge, absolute or sealed gauge |
| Output options | 4-20 mA, 2-wire; voltage output, 3-wire, configuration dependent |
| Supply voltage | 9-36 VDC for current output; 10-30 VDC for voltage output |
| Accuracy | +/-0.25% FS typical; +/-0.5% FS maximum |
| Operating temperature | -30 to +80 deg C |
| Sensor material | 316L stainless steel |
| Seal material | Fluororubber |
| Protection rating | IP65 plug-in type; IP68 cable type |
Source: Selection guide V1.0. Confirm the exact ordered configuration.
Overview
DFP4100 General Purpose Pressure Transmitter is designed for stable pressure measurement in industrial automation, water treatment, HVAC, process control, hydraulic systems, and OEM equipment.↳
Typical Applications
Water treatment and pump monitoring
HVAC and building automation
Hydraulic and pneumatic systems
Industrial machinery and compressor control
OEM equipment integration
Key Features
Compact structure and easy installation
Wide measuring range for different pressure media
Multiple electrical connection options for flexible wiring
High accuracy for stable process monitoring
Fully welded sensor design for demanding industrial use
Advantages for B2B Projects
Simple integration with common PLC and control systems
Reliable operation for continuous monitoring projects
Flexible connector and cable options
Suitable for standard orders and customized projects
FAQ
Can this model be customized?
Yes. Range, output signal, connector, cable length, and housing options can be tailored to your project.
What applications is it suitable for?
It is widely used in water treatment, HVAC, machine control, hydraulics, and OEM systems.
Do you support technical selection?
Yes. Share your medium, pressure range, signal type, and installation requirements, and we will recommend a suitable model.
Technical Data & Selection Guide
Selection Guidance
Specify output, calibrated range, pressure type and threaded process connection. Match the current or voltage variant to the controller input and supply. Select the electrical connection for the installation environment; plug-in and cable variants have different protection ratings.
Quotation Checklist
- Measured medium and application
- Required pressure, level, or temperature range
- Output signal and supply voltage
- Process connection and electrical connection
- Accuracy, protection, and operating temperature requirements
- Quantity, destination country, and OEM customization needs
Before You Request a Quote
For a faster technical response, include the installation environment, controller or PLC interface, expected order quantity, destination country, and whether you need a standard model, private label, custom cable, or special process connection.
Need a Datasheet or RFQ?
Send your technical requirements and our team will help confirm the suitable model and configuration.
