DFP4800 Pressure Transmitter
Send your application details for model confirmation and a quotation.
- Range and output selection support
- OEM configuration available
- Datasheet and technical response
Overview
DFP4800 Pressure Transmitter is designed for stable pressure measurement in industrial automation, water treatment, HVAC, process control, hydraulic systems, and OEM equipment.
Typical Applications
- Water treatment and pump monitoring
- HVAC and building automation
- Hydraulic and pneumatic systems
- Industrial machinery and compressor control
- OEM equipment integration
Key Features
- Compact structure and easy installation
- Wide measuring range for different pressure media
- Multiple electrical connection options for flexible wiring
- High accuracy for stable process monitoring
- Fully welded sensor design for demanding industrial use
Advantages for B2B Projects
- Simple integration with common PLC and control systems
- Reliable operation for continuous monitoring projects
- Flexible connector and cable options
- Suitable for standard orders and customized projects
FAQ
Can this model be customized?
Yes. Range, output signal, connector, cable length, and housing options can be tailored to your project.
What applications is it suitable for?
It is widely used in water treatment, HVAC, machine control, hydraulics, and OEM systems.
Do you support technical selection?
Yes. Share your medium, pressure range, signal type, and installation requirements, and we will recommend a suitable model.
Technical Data & Selection Guide
Overview
DFP4800 Pressure Transmitter is designed for stable pressure measurement in industrial automation, water treatment, HVAC, and process control projects. It combines compact sizing, rugged construction, and flexible installation options for OEM and retrofit applications.
Typical Applications
- Water treatment and pump monitoring
- HVAC and building automation
- Hydraulic and pneumatic systems
- Industrial machinery and compressor control
- OEM equipment integration
Product Features
Aluminum housing, IP67 protection
Reverse polarity, overcurrent, overvoltage & EMC protection

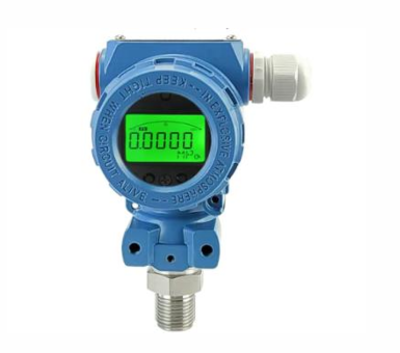

Optional LCD/LED display
Marine & explosion-proof versions available

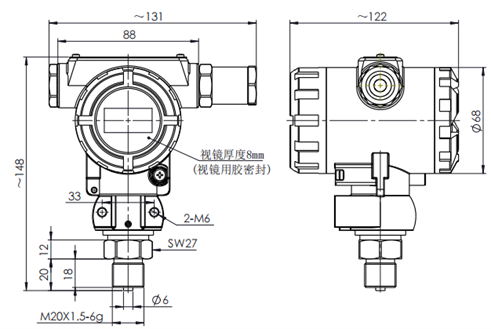

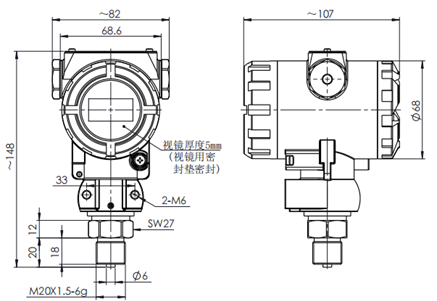

IS: Ex ia IIC T6 Ga; Flameproof: Ex db IIC T6 Gb
DFP4800 uses OEM isolated SS diaphragm sensor with laser trimming for wide temp compensation. Ideal for harsh outdoor sites requiring local display, zero/span adjustment. Used in petroleum, chemical, metallurgy, power, food, pharma, etc.
Technical Specifications
Range: -0.1MPa…0~0.01MPa…100MPa
Power: 11~30V DC
Output: 4-20mA, 4-20mA+HART, voltage
Operating Temp: -40~80℃ (standard); -30~60℃ (explosion-proof)
Selection Guidee
Example: DFP4800 [0-10]MPa E 22 M3 C1 i G
Advantages for B2B Projects
- Simple integration with common industrial control systems
- Stable output for continuous monitoring
- Flexible connector and cable options
- Suitable for both standard and customized orders
FAQ
Can this model be customized?
Yes. We can support customization for range, connector, cable outlet, and installation details.
What industries is it suitable for?
It is well suited for water treatment, HVAC, machinery, compressors, and general industrial automation.
Need a quotation or datasheet?
Contact us with your application, pressure range, output signal, and process connection requirements.
Download the Selection Guidee
The PDF below includes the detailed model configuration and selection reference.
Selection Guidance
Choose DFP4800 Pressure Transmitter based on the measurement range, available output interface, process connection, electrical connection, media compatibility, operating temperature, and required installation environment. Confirm that the selected model interface matches the PLC, controller, or embedded system used in the project.
OEM and Custom Options
DynaForce Sensor can support customized range, output, connection, cable length, label, packaging, and application-specific configuration for OEM equipment manufacturers, distributors, and system integrators.
Quotation Checklist
- Application and measured medium
- Required pressure, level, or temperature range
- Output signal and supply voltage
- Process connection and electrical connection
- Operating temperature and protection requirements
- Quantity, target delivery schedule, and OEM requirements
