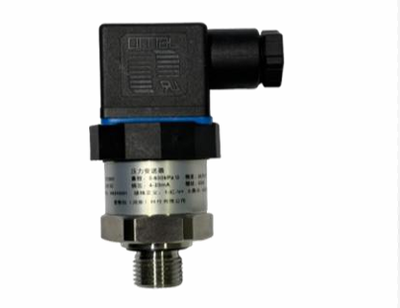

DFP20 Miniature Pressure Transmitter
Industrial pressure transmitter for water treatment, HVAC, hydraulics, machinery, and OEM projects.
- Range and output selection support
- OEM configuration available
- Datasheet and technical response

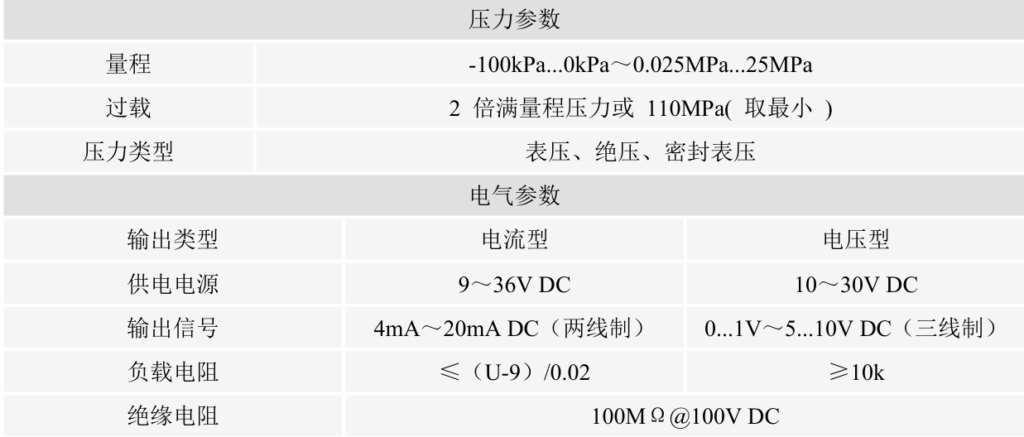

Technical Specifications
| Measurement range | -100 kPa...0 kPa to 0.025 MPa...25 MPa; specify the calibrated range |
|---|---|
| Pressure type | Gauge, absolute or sealed gauge |
| Output options | 4-20 mA, 2-wire; voltage output, 3-wire, configuration dependent |
| Supply voltage | 9-36 VDC for current output; 10-30 VDC for voltage output |
| Accuracy | +/-0.25% FS typical; +/-0.5% FS maximum |
| Operating temperature | -30 to +80 deg C |
| Sensor material | 316L stainless steel |
| Seal material | Fluororubber |
| Protection rating | IP65 plug-in type; IP68 cable type |
| Electrical connection options | Hirschmann connector, M12x1 plug or cable outlet |
Source: Selection guide V1.0. Confirm the exact ordered configuration.
Overview
DFP20 Miniature Pressure Transmitter is designed for stable pressure measurement in industrial automation, water treatment, HVAC, process control, hydraulic systems, and OEM equipment.
Typical Applications
- Water treatment and pump monitoring
- HVAC and building automation
- Hydraulic and pneumatic systems
- Industrial machinery and compressor control
- OEM equipment integration
Key Features
- Compact structure and easy installation
- Wide measuring range for different pressure media
- Multiple electrical connection options for flexible wiring
- High accuracy for stable process monitoring
- Fully welded sensor design for demanding industrial use
Advantages for B2B Projects
- Simple integration with common PLC and control systems
- Reliable operation for continuous monitoring projects
- Flexible connector and cable options
- Suitable for standard orders and customized projects
FAQ
Can this model be customized?
Yes. Range, output signal, connector, cable length, and housing options can be tailored to your project.
What applications is it suitable for?
It is widely used in water treatment, HVAC, machine control, hydraulics, and OEM systems.
Do you support technical selection?
Yes. Share your medium, pressure range, signal type, and installation requirements, and we will recommend a suitable model.
Technical Data & Selection Guide
The DFP20 type pressure transmitter is compact and suitable for a variety of pressure monitoring and measurement in general industrial applications, including water treatment, mechanical manufacturing, hydraulic and start-up, pumps and compressors, refrigeration systems, marine manufacturing, etc.
Product Features
Compact structure, easy installation
Pressure types: gauge pressure, absolute pressure, positive/negative pressure
Measuring range: -100…0kPa ~ 0.025…25MPa
Electrical connection: Hirschmann connector
Circular aviation plug M12×1

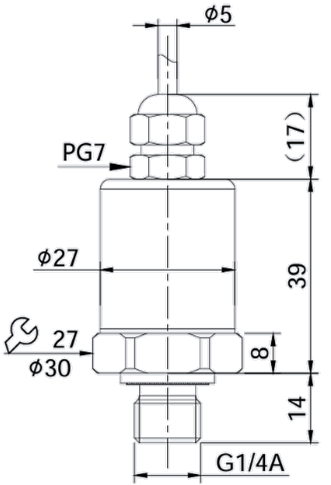

Cable outlet
Accuracy: ±0.25%FS, ±0.5%FS
Structural characteristics: fully welded sensor, compatible with breathable membrane
Rich optional models covering various applications
 |  |  |
Selection Guidance
Choose the current or voltage output before checking supply voltage and controller input. Protection depends on the electrical connection: the guide specifies IP65 for plug-in models and IP68 for cable models. Confirm media compatibility with the 316L sensor and fluororubber seal.
Quotation Checklist
- Measured medium and application
- Required pressure, level, or temperature range
- Output signal and supply voltage
- Process connection and electrical connection
- Accuracy, protection, and operating temperature requirements
- Quantity, destination country, and OEM customization needs
Before You Request a Quote
For a faster technical response, include the installation environment, controller or PLC interface, expected order quantity, destination country, and whether you need a standard model, private label, custom cable, or special process connection.
Need a Datasheet or RFQ?
Send your technical requirements and our team will help confirm the suitable model and configuration.
